K30M MINIMAL
Categories
Sliding Door
Casement System
Minimal

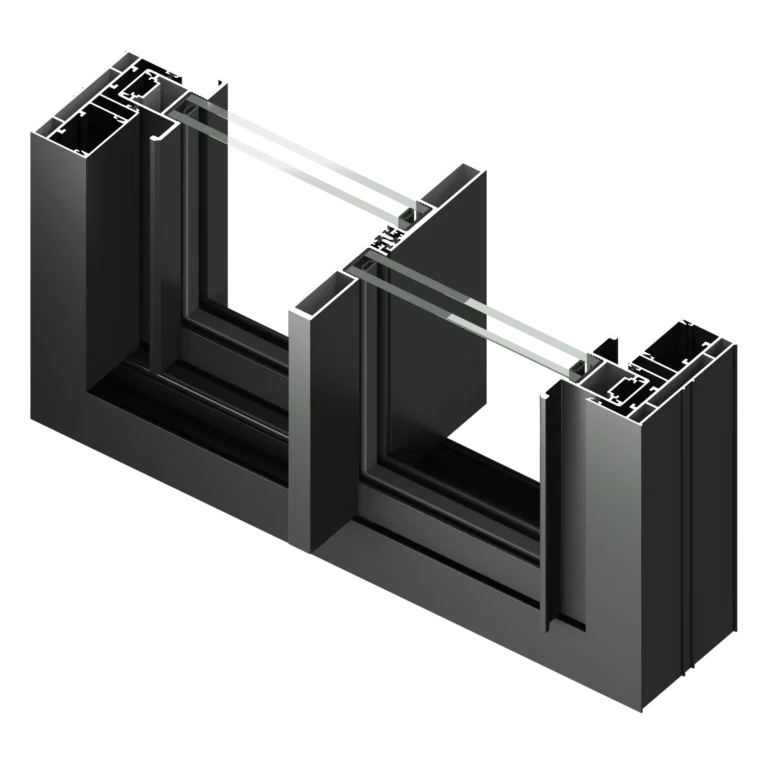

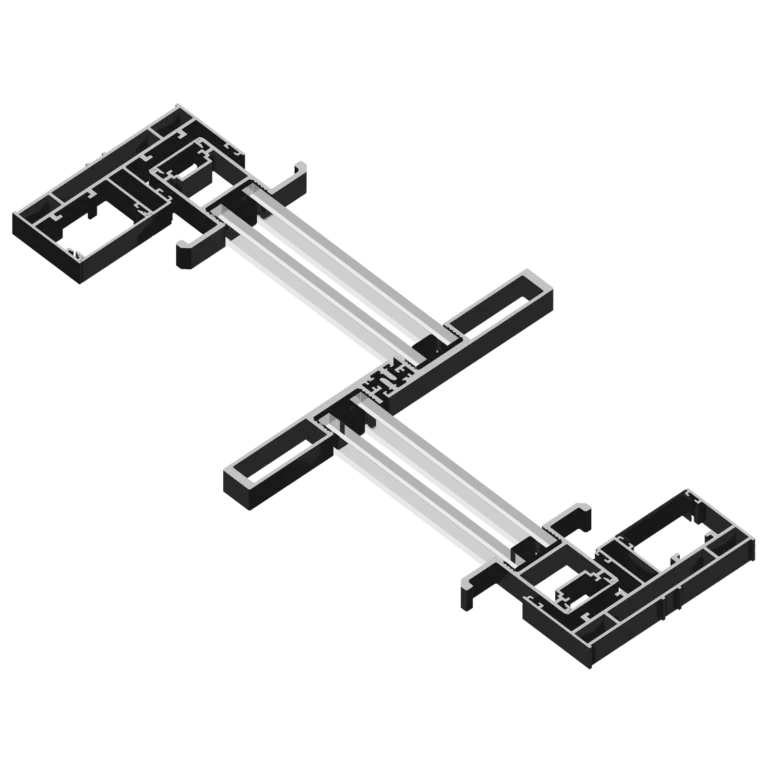

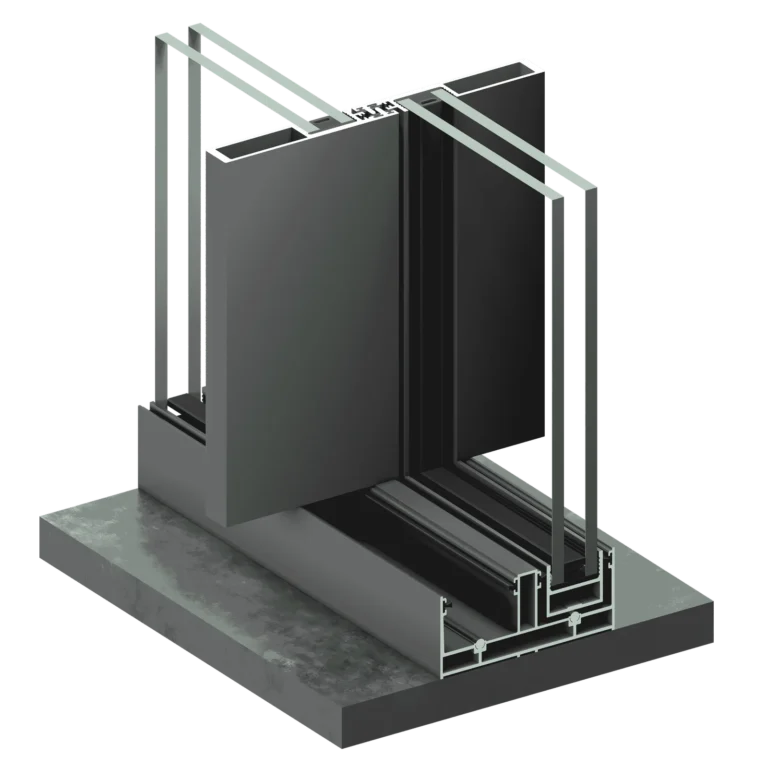

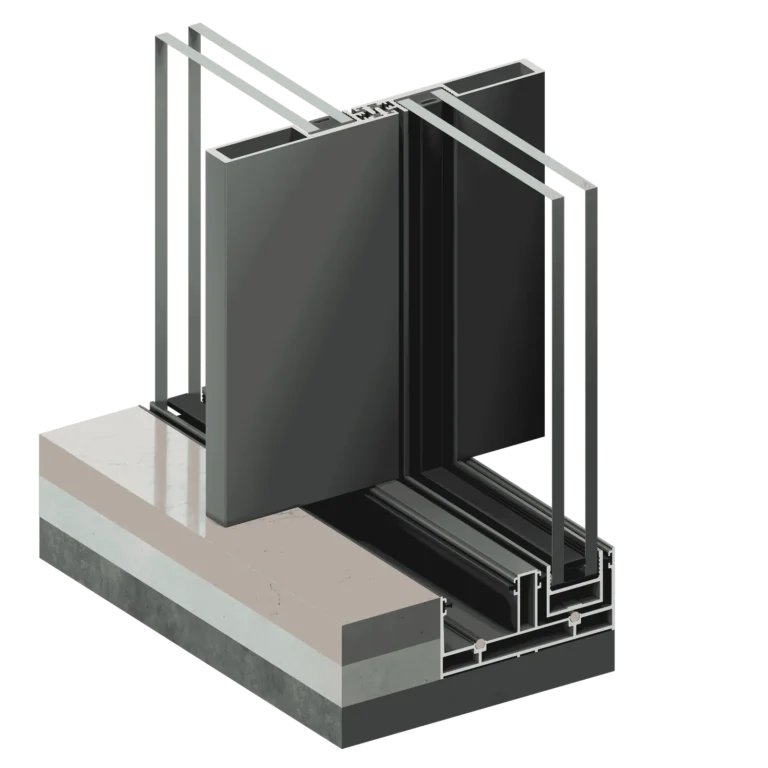

Cross Section
System Specification
| Profile Alloy | T6-6063 |
| Glass Thickness | 17.52, 24, 28, 32 |
| Max Shutter Height* | 3600 |
| Max Shutter Weight | 300kg |
| Multi Locking | Yes |
| Mosquito Mesh Solution | Pleated / Roll Up |
| Hidden Bottom | Yes |
| Corner Opening | Yes |
| Roller Rail | Stainless Steel |

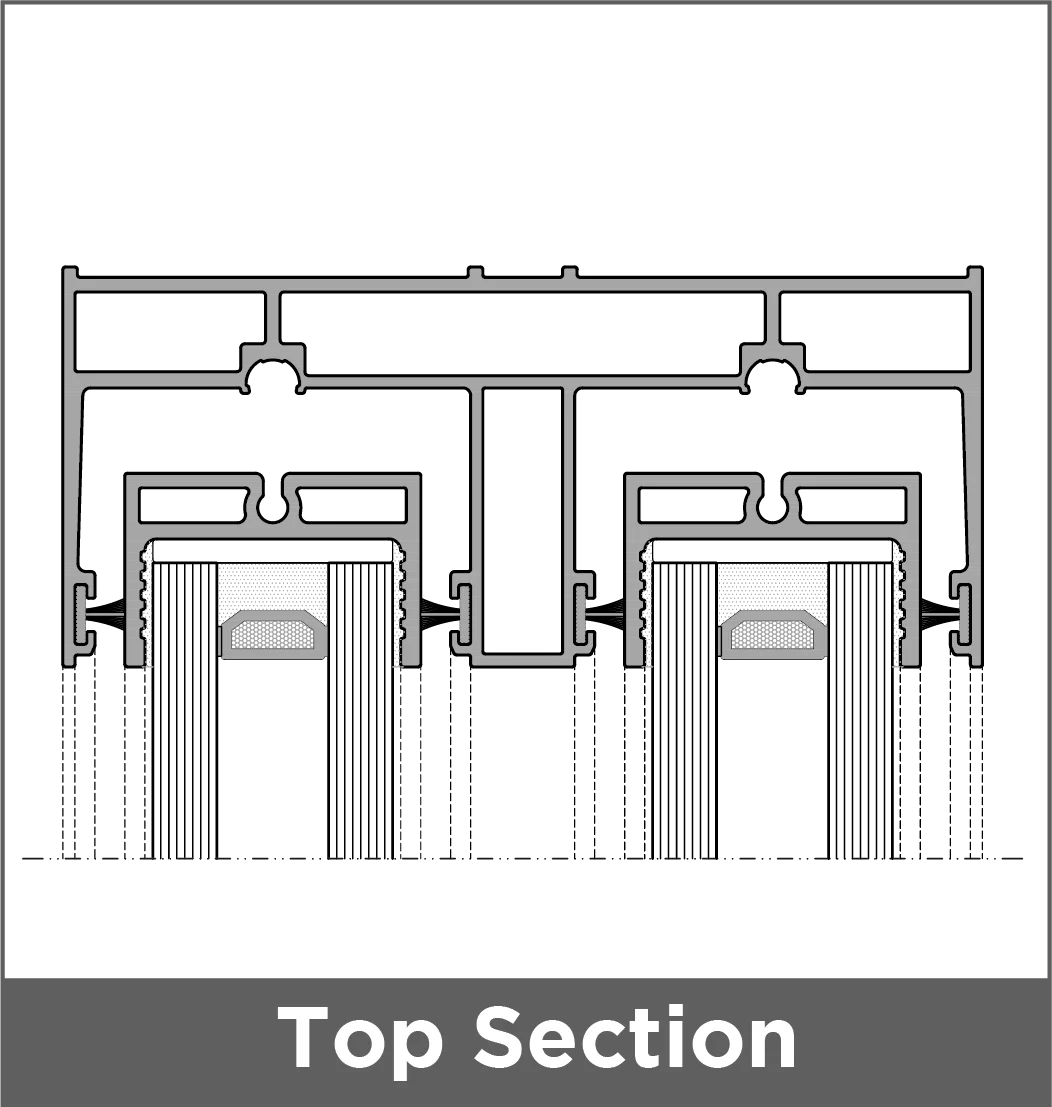

Section Details
| Frame Height | 50 |
| Frame width 2 Track | 115 |
| Frame width 3 Track | 178 |
| Interlock Sightline | 20 |
| Center Opening Profile Width | 64 |

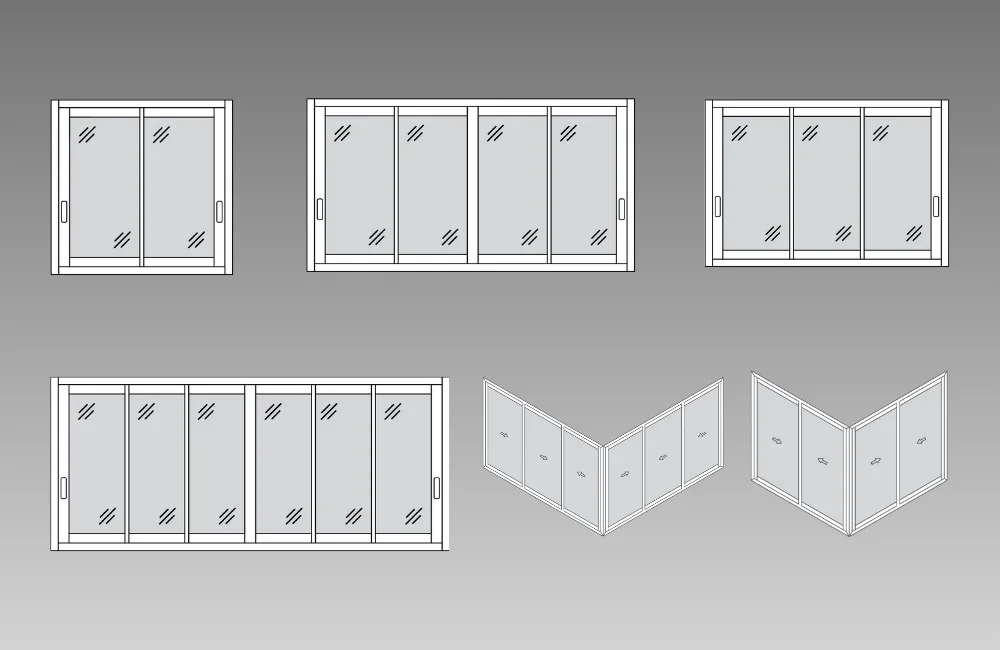

Typologies
